优点:
●多种发动机品牌及排放标准选择适应全球不同市场
●采用全球知名品牌液压及泵阀系统保证操作稳定性
●多功能如侧摆、履带伸缩等全系产品可任选
●多款辅具随心搭配使用超20年生产经验,系统配合稳定
Advantages:
● A variety of engine brands and emission standards to adapt to different markets around the world
●The use of the world's leading brands of hydraulics and pumps and valves to ensure the stability of the operation
●Full range products could be selected with multi-functional, such as the side swing, track telescopic, full hydraulic operation etc.
●Various attachments optional for different applications
| Overall Performance/Models整体型号 | Unit | HI17E | ||
| General Machine Performance 机器整体参数 | Operating weight | 整机重量 | kg | 1200 |
| Length (L) | 长 | mm | 3380 | |
| Width (W) | 宽 | mm | 1080 | |
| Height (H) | 高 | mm | 2200 | |

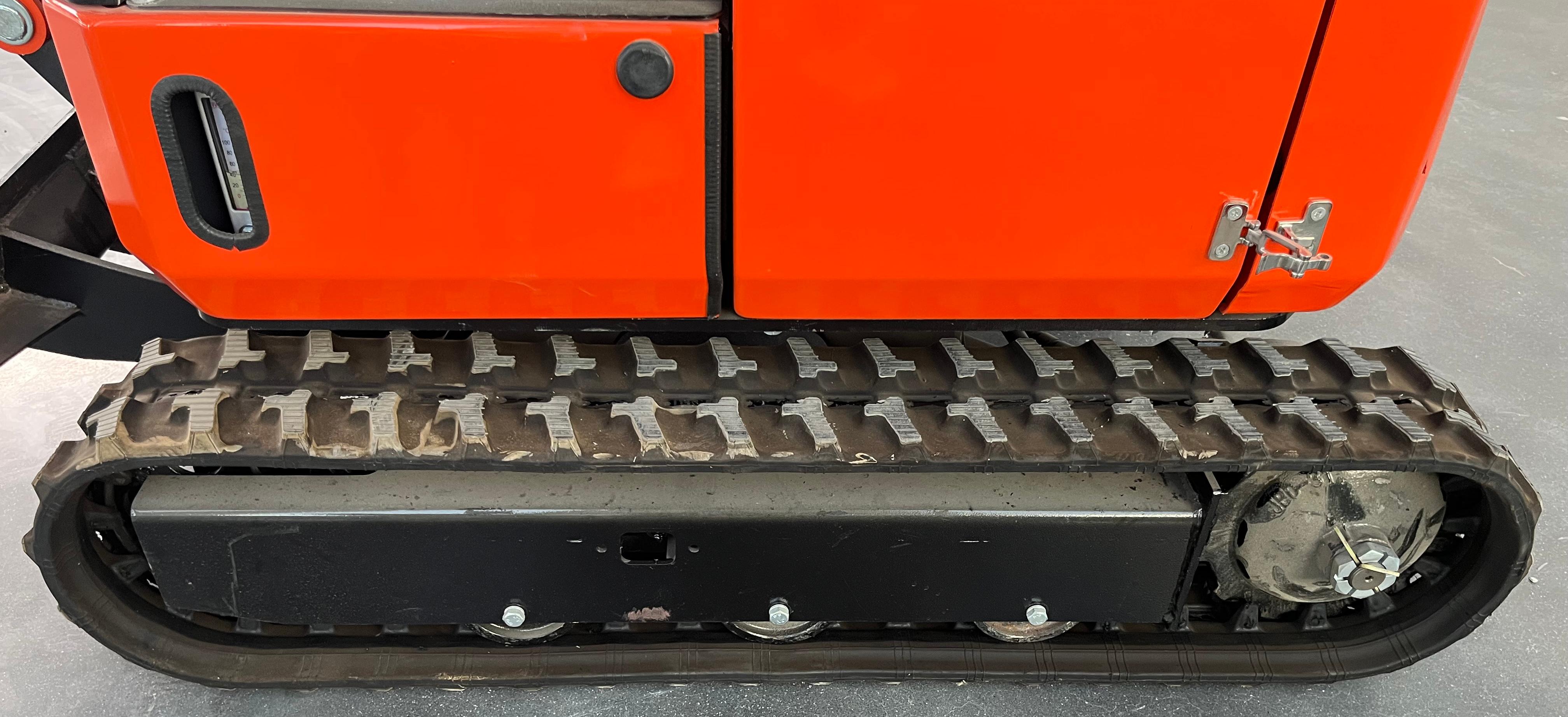

| Track Length | 履带长度 | mm | 1360 | |
| Underground Width | 底盘宽度 | mm | 1080 | |
| Standard bucket capacity | 标准铲斗斗容 | m³ | 0.03 | |
| Standard Bucket width | 标准铲斗宽度 | mm | 400 | |
Main Range of Operation 主要操作范围 | Max Digging Depth | 最大挖掘深度 | mm | 2000 |
| Max Digging Height | 最大挖掘高度 | mm | 2850 | |
| Max Dumping Height | 最大卸载高度 | mm | 1900 | |
| Max Digging Reach at Ground Level | 最大挖掘半径 | mm | 3600 | |
| Min Swing Radius of Work Equipment | 最小回转半径 | mm | 1700 | |
| Max Digging Distance | 最大挖掘距离 | mm | 2800 | |

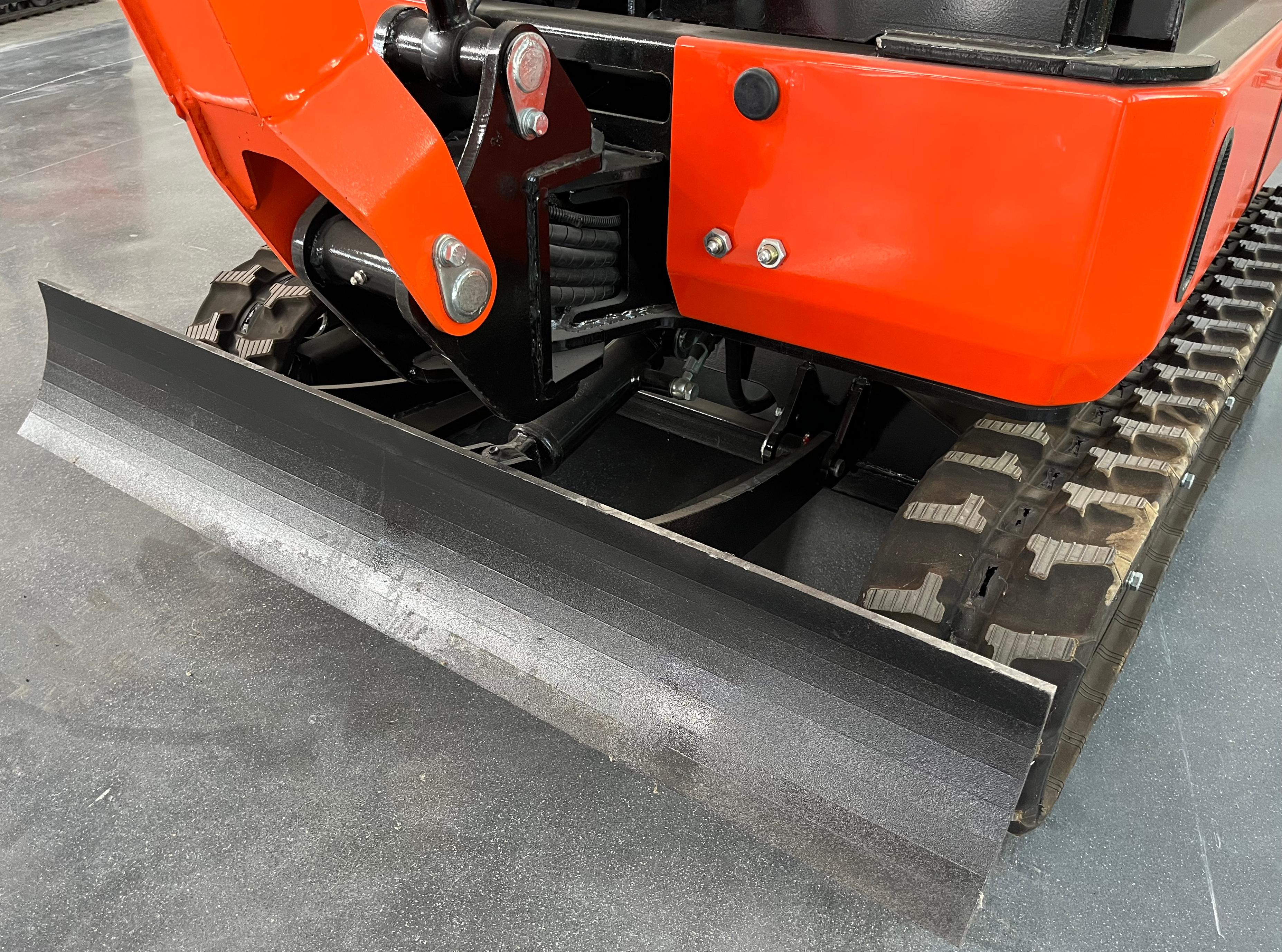

| Max Lifting Height of Bulldozer | 推土铲提升高度 | mm | 190 | |
| Max Excavation Depth of Bulldozer | 推土铲下降深度 | mm | 140 | |
| Main Performance Parameters 主要性能参数 | Engine Model | 发动机型号 | 莱动KM385 | |
| Engine Power | 发动机参数 | 18.1kw-2200rpm | ||
| Working Pressure | 工作压力 | Mpa | 18 | |
| Main Pump | 主泵 | ml/r | 10+4 | |
| Max Climb Capacity | 爬坡能力 | ° | 30 | |
| Bucket Digging Force | 最大挖掘力 | KN | 11 | |
